XHP120C
Item No. XHP120C

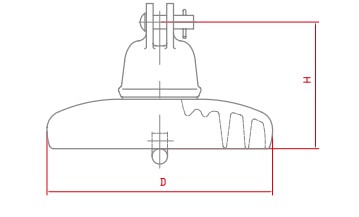

| MAIN DIMENSIONS AND STANDARD PARTICULARS | |||
| Cat No | XHP-120C | ||
| Coupling Size | 16C | ||
| Main Dimension,mm | D | 254 | |
| H | 146 | ||
| Leakage Distance | 4300 | ||
| Combined M&E strength KN | 120 | ||
| Withstand Voltage | 1 minute wet power frequency KV | 45 | |
| Lighting Impulse,KV | 120 | ||
| Power Frequency puncture voltage,KV | 120 | ||
