57-3

Item No. 57-3

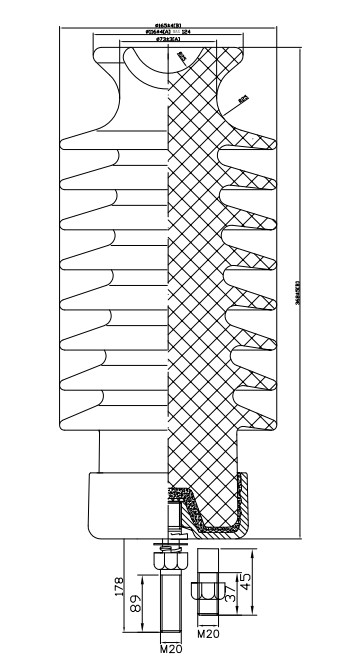

MAIN DIMENSIONS AND STANDARD PARTICULARS
ANSI Class	57-3
Dimensions of the pin/mm	M20
Creepage Distance/mm	737
Dry Arcing Distance/mm	311
Cantilever Strength/kn	12.5
Low Frequency Dry Flashover Voltage/kv	125
Low Frequency Wet Flashover Voltage/kv	100
Critical Impulse Flashover Voltage, Pos/kv	210
Critical Impulse Flashover Voltage, Neg/kv	260
Test Voltage to Ground/kv	30
Maximum RIV at 1000KHZ/μv	200
Net Weight/kg	11.0
