XHP100C
Item No. XHP100C
| MAIN DIMENSIONS AND STANDARD PARTICULARS | |||
| Cat No | XHP-100C | ||
| Coupling Size | 16C | ||

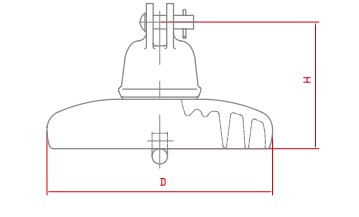

| Main Dimension,mm | D | 254 | |
| H | 146 | ||
| Leakage Distance | 430 | ||
| Combined M&E strength KN | 100 | ||
| Withstand Voltage | 1 minute wet power frequency KV | 45 | |
| Lighting Impulse,KV | 120 | ||
| Power Frequency puncture voltage,KV | 120 | ||
