TR208series

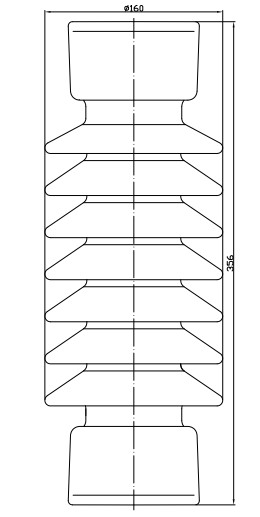

Item No. TR208

MAIN DIMENSIONS AND STANDARD PARTICULARS
Cat.No.	TR-208
Creepage Distance/mm	610
Cantilever Strength/kn	8.9
Tensile Strength/kn	44.5
Torsional Strength/k.m	904
Compression Strength/kn	44.5
Low Frequency Dry Flashover Voltage/kv	110
Low Frequency Wet Flashover Voltage/kv	75
Critical Impulse Flashover Voltage, Pos/kv	170
Critical Impulse Flashover Voltage, Neg/kv	250
Low Frequency Dry Withstand Voltage/kv	70
Low Frequency Wet Withstand Voltage/kv	60
Impulse Withstand Voltage/kv	150
Net Weight/kg	11
Applicable Standard	ANSI C29.9
