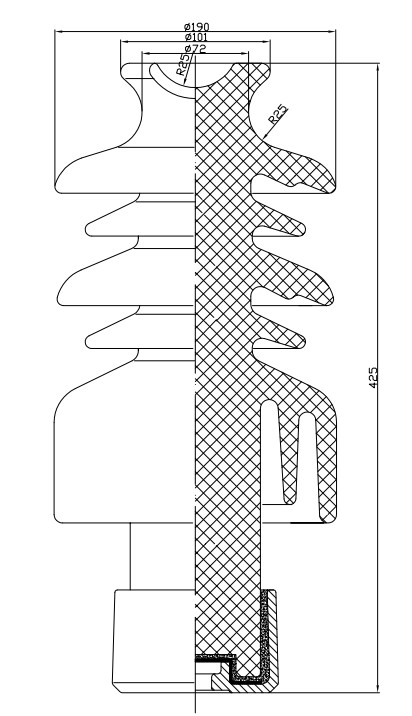

57-4 Thailand Type
Item No. 57-4
| MAIN DIMENSIONS AND STANDARD PARTICULARS | ||
| Cat.No. | Thailand Type | |
| Leakage Distance/mm | 953 | |
| Protective Leakage Distance/mm | 483 | |
| Min.Cantilever Failing Load/kn | 12.5 | |
| Power-freq.1 min Withstand Dry Voltage,kv | 140 | |
| Power-freq.1 min Withstand Wet Voltage,kv | 95 | |
| Lightning Impulse Withstand Voltage/kv | - | |
| Net Weight,kg | - | |
