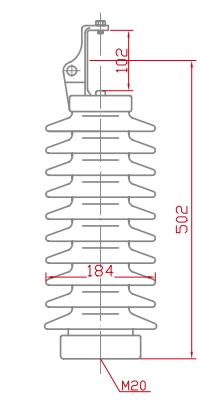

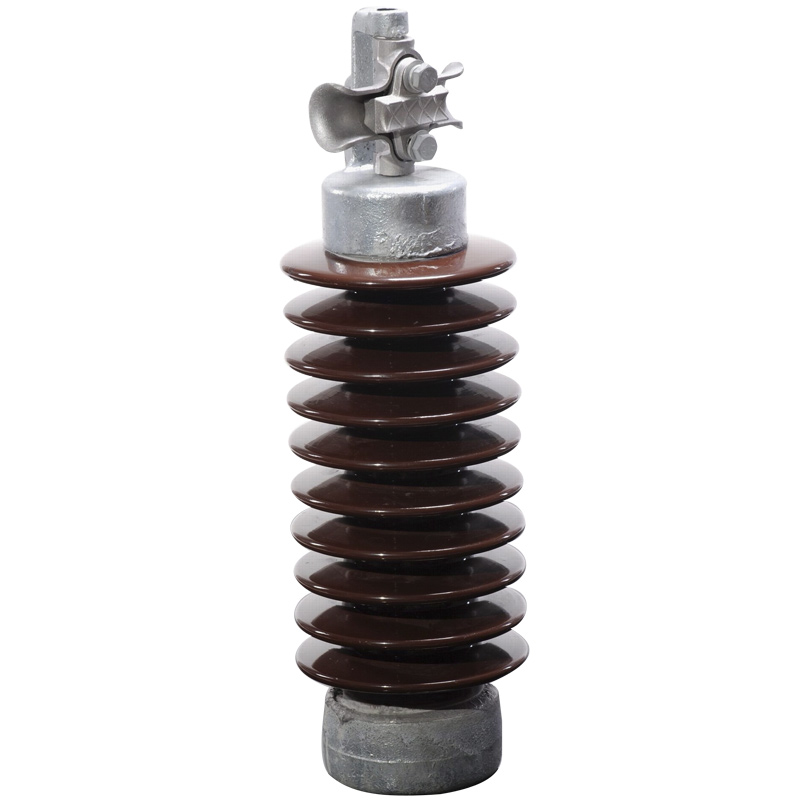

57-24

Item No. 57-24

MAIN DIMENSIONS AND STANDARD PARTICULARS
ANSI Class		57-24
Creepage Distance, mm		1015
Dry Arcing Distance, mm		368
Cantilever Strength, kn		12.5
Low Frequency Flashover Voltage	Dry, kv	150
	Wet, kv	135
Critical Impulse Flashover Voltage	Pos., kv	255
	Neg., kv	340
Test Voltage to Ground, kv		44
Maximum RIV at 1000KHZ, μv		200
Net Weight, Each Approx., kg		16.8
