57-25

Item No. 57-25

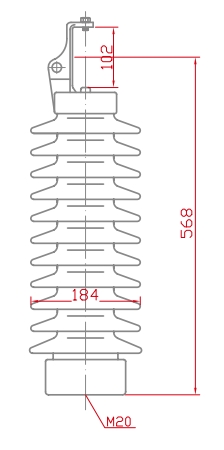

MAIN DIMENSIONS AND STANDARD PARTICULARS
ANSI Class		57-25
Creepage Distance, mm		1145
Dry Arcing Distance, mm		438
Cantilever Strength, kn		12.5
Low Frequency Flashover Voltage	Dry, kv	175
	Wet, kv	160
Critical Impulse Flashover Voltage	Pos., kv	290
	Neg., kv	380
Test Voltage to Ground, kv		44
Maximum RIV at 1000KHZ, μv		200
Net Weight, Each Approx., kg		19.5
